ECR-Glass Assembled Roving for Thermoplastic
ECR Glass Assembled Roving For Thermoplastic
The products are designed to used reinforcing silane size and provide good compatible with matrix resins,excellent abrasion resistance,low fuzz,allowing suoerior Processability and dispersion.
| Products code | Filament diameter(μm) | Linear Density(tex) | Compatible Resin | Product features and Application |
| EW723R | 17 | 2000 | PP | 1. Excellent hydrolysis resistance 2. High Performance, low fuzz 3. Sfandard product certified to FDA 4. Good choppability 5. Good dispersion 6. Low static 7. High strength 8. Good choppability 9. Good dispersionLow static 10. Mainly used in automotive, building&construction, truck sheets |
| EW723R | 17 | 2400 | PP | |
| EW723H | 14 | 2000 | PA/PE/PBT/PET/ABS |
| Code | Technical Parameters | Unit | Test Results | Testing Standard |
| 1 | Exterior | - | White, no pollution | Version |
| 2 | Filament diameter | μm | 14±1 | ISO 1888 |
| 3 | Moisture | % | ≤0.1 | ISO 3344 |
| 4 | LOI | % | 0.25±0.1 | ISO 1887 |
| 5 | RM | N/tex | ＞0.35 | GB/T 7690.3-2201 |
| Pallet | N.W(kg) | Pallet size(mm) |
| Pallet (big) | 1184 | 1140*1140*1100 |
| Pallet(small) | 888 | 1140*1140*1100 |
STORAGE
Unless otherwise specified, fiberglass roving should be stored in a dry and cool place with original package, do not open the package until use. the best storage conditions are at temperatures from 15 to 35℃ and humidity between 35 to 65%. To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high, when the pallets are stacked in 2 or 3 layer, care should be taken to correctly and smoothly move the top pallet.
Application

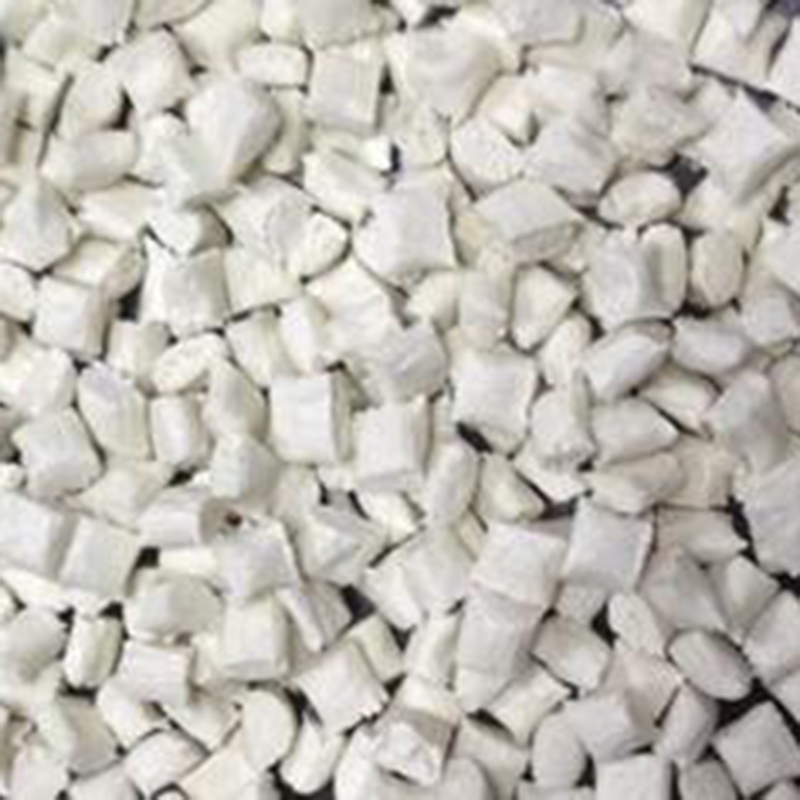

It is mainly used in twin-screw extrusion molding process to produce thermoplastic pallets, and is widely used in automobile parts, electronic and electrical, and machine tools. Machinery tools, chemical antiseptic, sporting goods, etc.
