The fiberglass winding process, often referred to as filament winding, is a fabrication technique primarily used for creating strong, lightweight cylindrical structures like pipes, tanks, and tubes. This method involves winding continuous fibers soaked in resin around a rotating mandrel, following a predetermined pattern to enhance the mechanical properties and strength of the final product. Here’s an overview of how it works:

1. **Setup and Preparation**: A mandrel that defines the inner geometry of the final product is set up on a winding machine. The fibers, typically fiberglass, are impregnated with a resin matrix either prior to winding or during the winding process.

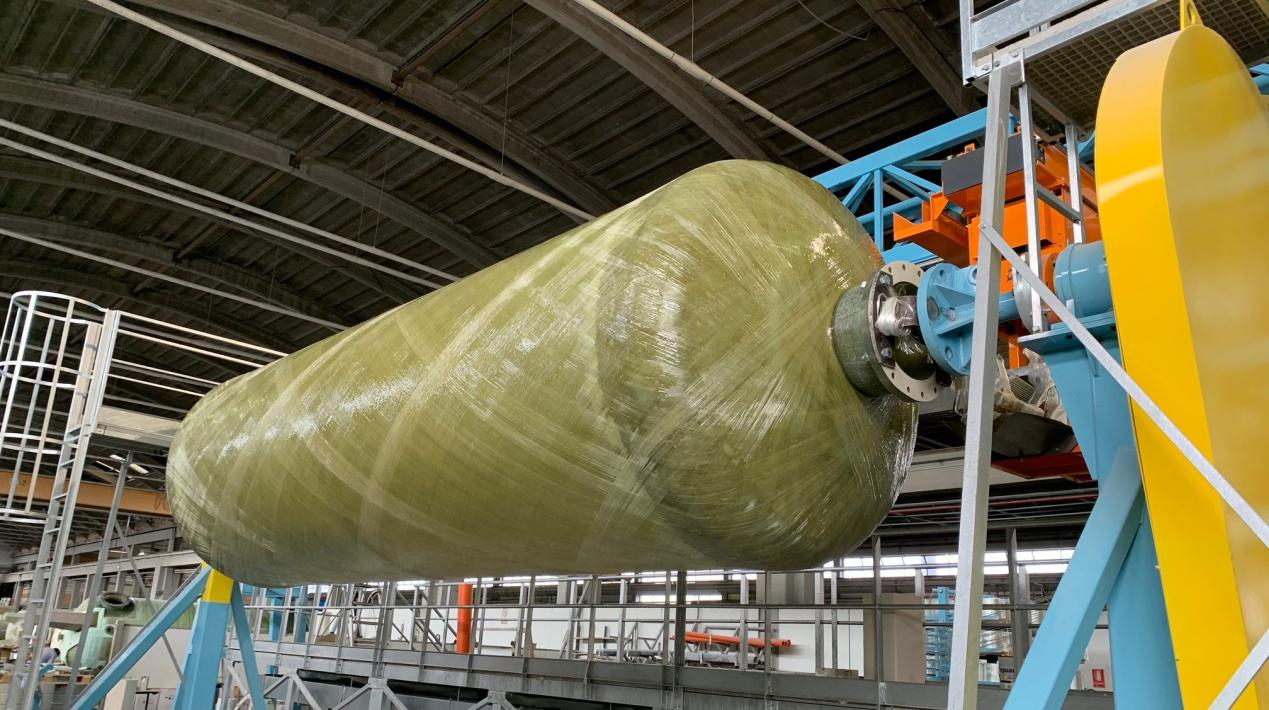

2. **Winding Process**: The fiberglass rovings are wound around the mandrel under controlled tension. The winding pattern can be helical, circumferential, or a combination of both, depending on the desired mechanical properties and the structural requirements of the product.

3. **Resin Curing**: Once the winding is complete, the resin is cured, often through the application of heat. This hardens the resin, which solidifies the composite material, ensuring that the fibers are locked in place.

4. **Mandrel Removal**: After curing, the mandrel is removed. For permanent mandrels, the core becomes a part of the final structure.

5. **Finishing**: The final product may undergo various finishing processes, such as machining or the addition of fittings, depending on its intended use.

This process allows for a high degree of control over the fiber orientation and the wall thickness of the product, which can be precisely adjusted to meet specific strength and durability requirements. Filament winding is favored in industries where high strength-to-weight ratios are crucial, such as aerospace, automotive, and industrial applications.
